Pre‑Camber Determination Using Staged Construction Analysis

Abstract

Precamber estimation is critical for achieving the intended final geometric profile in segmentally constructed bridge superstructures. This study presents two analytical methodologies for evaluating casting curves using staged construction analysis in SOFiSTiK. The structural model is developed in SOFiPLUS, the AutoCAD-based pre-processor of SOFiSTiK, using three beam elements, each 1 m in length, with a 250 × 300 mm rectangular cross‑section. Material properties corresponding to M20 grade concrete and Fe 500 reinforcement steel are defined in accordance with IRC provisions.

In Methodology 1, construction stages 10, 20, 30, and 31 are defined such that segment groups are activated sequentially, followed by dead‑load activation in subsequent stages to obtain the casting curve.

Methodology 2 adopts a discretized staging sequence 10, 11, 20, 21, 30, and 31, in which segment activation and self‑weight application are treated as independent events. This approach enables clearer interpretation of stage‑wise deformation behavior and relative camber development.

1. Introduction

Precamber plays a vital role in segmental bridge construction by counteracting deformation effects arising from self‑weight and staged erection loading. During construction, each newly erected segment undergoes vertical deflection due to its own weight as well as load transfer from previously erected segments. If such deformations are not compensated during fabrication, the completed bridge profile may deviate from the intended geometry.

This study focuses on the determination of precamber using staged construction analysis. The methodology includes structural modelling, definition of construction stages, staged load application, extraction of nodal deformations, and computation of relative and cumulative camber values required to establish the casting curve.

2. Technical Methodology — Methodology 1

Construction Camber Evaluation Using Combined Stage Activation

Methodology 1 evaluates relative and construction camber from cumulative deformation obtained through staged construction analysis. The approach simulates erection behavior by sequentially activating structural segments, followed by activating their self‑weight.

2.1 Structural Modelling

The analytical model is developed using SOFiPLUS. The bridge superstructure is idealized as three beam elements, each 1 m long. A rectangular cross‑section of 250 × 300 mm is assigned to the structural line.

Material properties are defined as follows:

• Concrete: M20 grade
• Reinforcement: Fe 500 steel
• Design provisions: IRC guidelines

Each beam element represents an individual precast segment and is assigned to separate structural groups:

• Group 1 → Segment 1
• Group 2 → Segment 2
• Group 3 → Segment 3

This grouping facilitates sequential activation to simulate actual segmental erection.

2.2 Definition of Construction Stages

Construction stages are defined using the Construction Stage Manager (CSM) module.

In Methodology 1, four primary stages are considered:

In this methodology, structural activation and dead‑load application are combined within the same subsequent stages. No intermediate stages are defined exclusively for self‑weight.

2.3 Load Application

Dead load is modeled as a self-weight segment. The load is activated automatically through construction stage definitions corresponding to each erection sequence. No additional load cases are required.

2.4 Analysis Parameters

Construction stage analysis is executed considering:

• Sequential structural group activation
• Time‑dependent geometric changes
• Stage‑wise stiffness variation
• Self‑weight‑induced deformation

Control parameters related to formwork placement are defined in accordance with the tangential cantilever erection methodology to simulate realistic site conditions.

2.5 Extraction of Deformation Results

Vertical nodal deformations (Uz) are extracted at predefined control nodes, which represent fabrication reference points. Results are obtained for all construction stages (10, 20, 30, 31).

The final opening stage (Stage 31) is considered the reference stage for geometry control.

2.6 Determination of Construction Camber

Construction camber is calculated from cumulative deformation observed at each stage. The required pre‑camber at a given node is taken as the inverse of the final stage deformation relative to the reference geometry.

Relative camber between consecutive segments is obtained from the difference in deformation values. Cumulative summation of these relative cambers establishes the casting curve.

2.7 SOFiSTiK Command

+prog csm
head Pre‑Camber Plot
camb tabn
camb tabn 1001,1002,1003   $ Node selection
camb tabv 3                $ Vertical deformation (Vz)
camb tabc 10,20,30,31      $ Construction stages
camb tabf 2                $ Output format
end

3. Outcome of Methodology 1

This methodology provides:

• Direct evaluation of cumulative deformation
• Required pre‑camber values at each erection stage
• Casting Curve profile for fabrication control

However, since structural activation and self‑weight application occur within the same stages, interpretation of individual relative camber components requires additional post‑processing.

4. Stage‑Wise Camber Derivation — Methodology 1

Pre‑camber values are derived from staged deformation results by evaluating nodal vertical displacement differences at each erection stage.

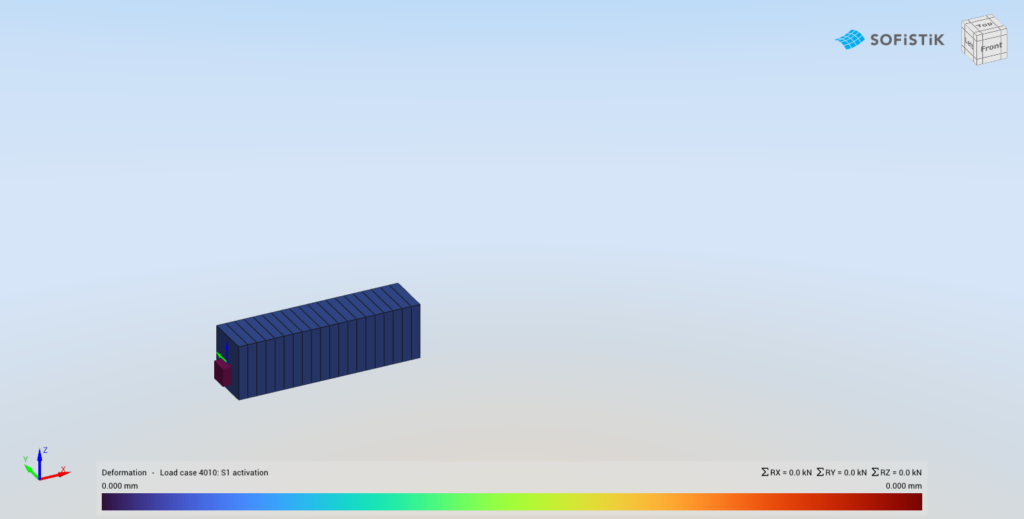

Stage 10 — Activation of Segment 1

Only Segment 1 is active.

• Deformation at Node 0 = (0 − 0) = 0 mm
• Deformation at Node 1001 = (0 − (−1.67)) = +1.67 mm

Relative Camber (Node 1001 – Node 0):
Relative Camber = 1.67 − 0 = 1.67 mm
This represents the fabrication camber required for Segment 1.

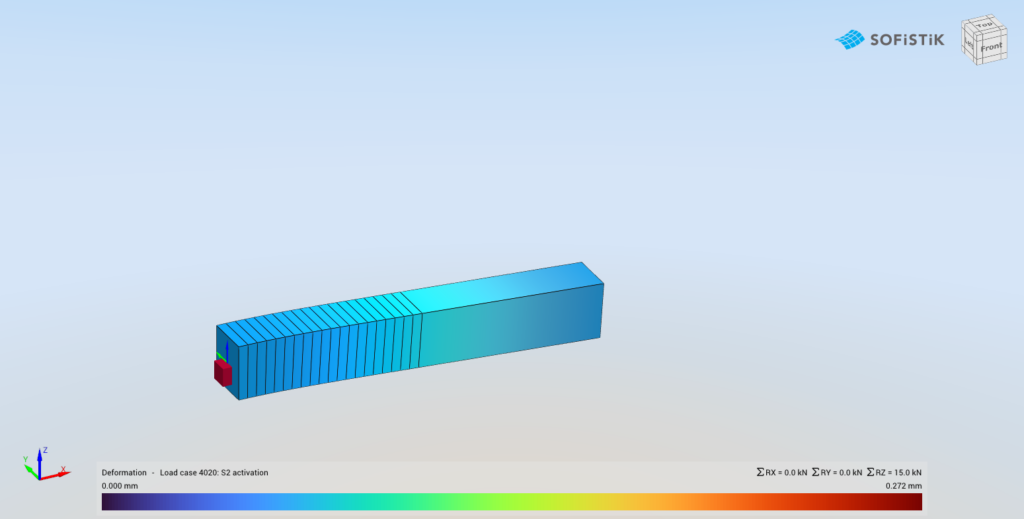

Stage 20 — Activation of Segment 2

(Segment 1 self‑weight active; Segment 2 without self‑weight)

• Node 1001 deformation due to Segment 1 self‑weight:
  (−0.12 − (−1.67)) = 1.55 mm
• Node 1002 deformation due to Segment 1 self‑weight:
  (−0.27 − (−5.28)) = 5.01 mm

Relative Camber (Node 1002 – Node 1001):
Relative Camber = 5.01 − 1.55 = 3.46 mm

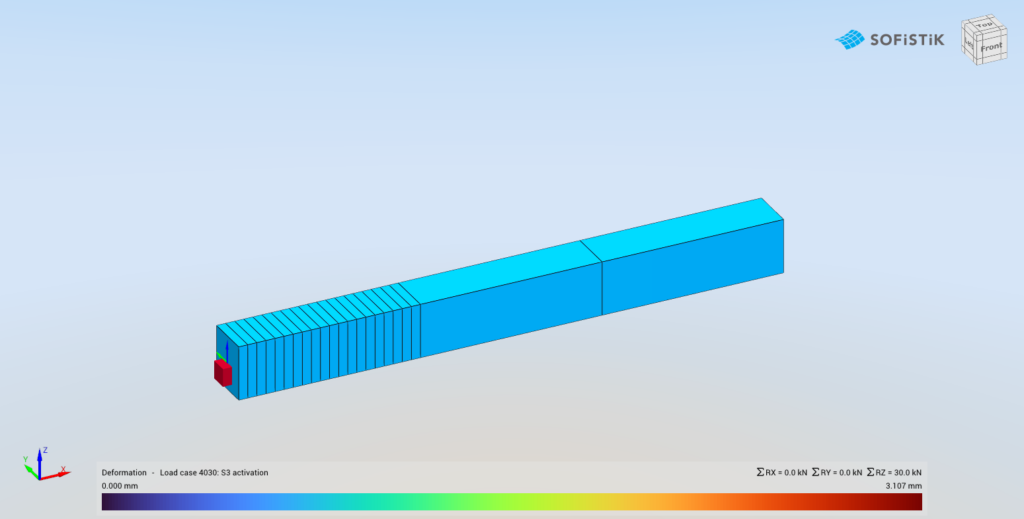

Stage 30 — Activation of Segment 3

(Segment 2 self‑weight active; Segment 3 without self‑weight)

• Node 1002 deformation due to Segment 2 self‑weight:
  (−1.86 − (−5.28)) = 3.42 mm
• Node 1003 deformation due to Segment 2 self‑weight:
  (−3.11 − (−9.44)) = 6.33 mm

Relative Camber (Node 1003 – Node 1002):
Relative Camber = 6.33 − 3.42 = 2.91 mm

SOFiSTiK Report Pre-camber Table:

5. Construction Camber (Casting Curve)

Construction camber is obtained by the cumulative summation of relative camber values along the bridge alignment:

6. Final Interpretation

Considering Stage 31 as the bridge opening stage, the cumulative camber values derived above define the required fabrication (casting) curve.

Providing these pre‑camber ordinates during segment casting ensures that, after all staged self‑weight deformations occur, the completed bridge profile achieves the intended geometric alignment at service condition.

7. Technical Methodology — Methodology 2

Construction Camber Evaluation Using Discretized Stage Activation

Methodology 2 is developed to improve clarity in interpreting stage-wise deformation and relative camber development by separating structural activation and self-weight application into independent construction stages. This discretized staging approach enables more transparent tracking of the contributions of deformation from each construction event.

7.1 Structural Modelling

The analytical model is developed using SOFiPLUS, consistent with Methodology 1 to maintain uniformity and ensure direct comparability of results.

The bridge superstructure is idealized as three beam elements, each 1 m long. A rectangular cross-section of 250 × 300 mm is assigned to the structural line.

Material properties are defined as follows:

• Concrete: M20 grade
• Reinforcement: Fe 500 steel
• Design provisions: IRC guidelines

Each beam element represents an individual precast segment and is assigned to separate structural groups as follows:

• Group 1 → Segment 1
• Group 2 → Segment 2
• Group 3 → Segment 3

This grouping facilitates sequential activation to simulate actual segmental erection behaviour during staged construction analysis.

7.2 Definition of Construction Stages

Unlike Methodology 1, this approach separates segment erection and self-weight activation into different stages.

The construction sequence is defined as follows:

This staging method enables direct identification of deformation caused by:

• Segment erection
• Previously erected segment loading
• Newly applied self-weight

7.3 Load Application

Dead load is applied as self-weight and is activated in dedicated stages (11, 21, 31). This separation eliminates deformation overlap and simplifies the interpretation of camber.

No superimposed loads are considered in this study.

7.4 Analysis Parameters

Construction stage analysis considers:

• Sequential segment erection
• Independent self-weight activation
• Stage-wise stiffness evolution
• Time-dependent geometric response

Formwork and cantilever control parameters are defined in accordance with the tangential erection methodology.

7.5 Extraction of Deformation Results

Vertical nodal displacements (Uz) are extracted at predefined casting control nodes for all construction stages.

Because self-weight is activated in separate stages, deformation increments between consecutive stages directly represent load-induced responses.

The final bridge profile is evaluated at Stage 31, considered the opening stage.

7.6 Determination of Relative and Construction Camber

Relative camber is computed from deformation differences between erection and corresponding self-weight stages.

For each segment:
Relative Camber = Deformation after self-weight − Deformation at the erection stage

Cumulative summation of relative camber values along the span produces the required casting curve.

8. Stage‑Wise Camber Derivation — Methodology 2

Pre‑camber values in Methodology 2 are derived by directly evaluating deformation increments between erection stages and their corresponding self‑weight activation stages. Since structural activation and loading are separated, relative camber extraction becomes more transparent and requires minimal post‑processing.

Stage 10 → 11 — Segment 1

• Stage 10: Activation of Segment 1 (No self‑weight)
• Stage 11: Self‑weight of Segment 1 activated

Deformation increments due to the self‑weight of Segment 1:

• Node 0 → 0.00 mm
• Node 1001 → +1.67 mm

Relative Camber (Segment 1):
Relative Camber = 1.67 − 0 = 1.67 mm
This represents the fabrication camber required for Segment 1.

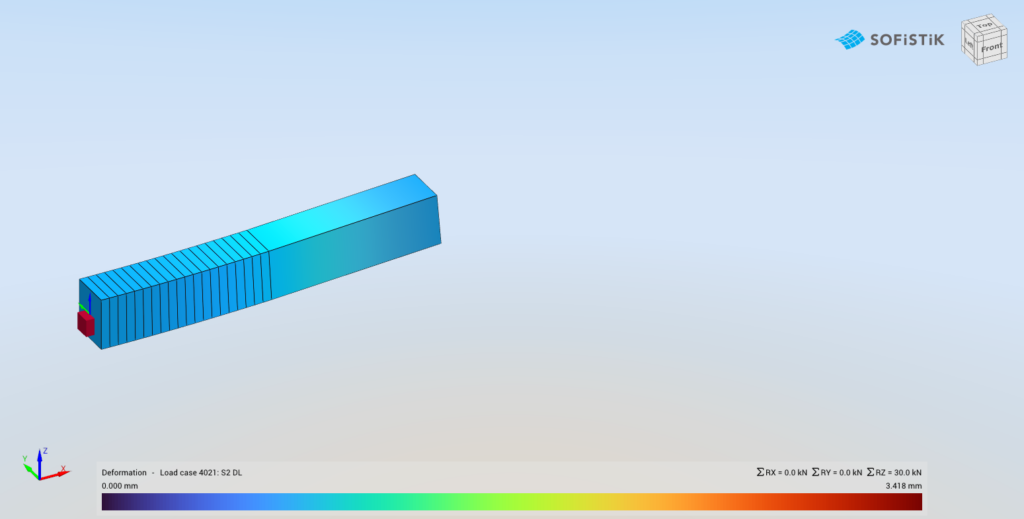

Stage 20 → 21 — Segment 2

• Stage 20: Activation of Segment 2 (without self‑weight)
• Stage 21: Self‑weight of Segment 2 activated

Deformation increments due to self‑weight of Segment 2 (including load transfer effects):

• Node 1001 → 1.55 mm
• Node 1002 → 5.01 mm

Relative Camber (Segment 2):
Relative Camber = 5.01 − 1.55 = 3.46 mm

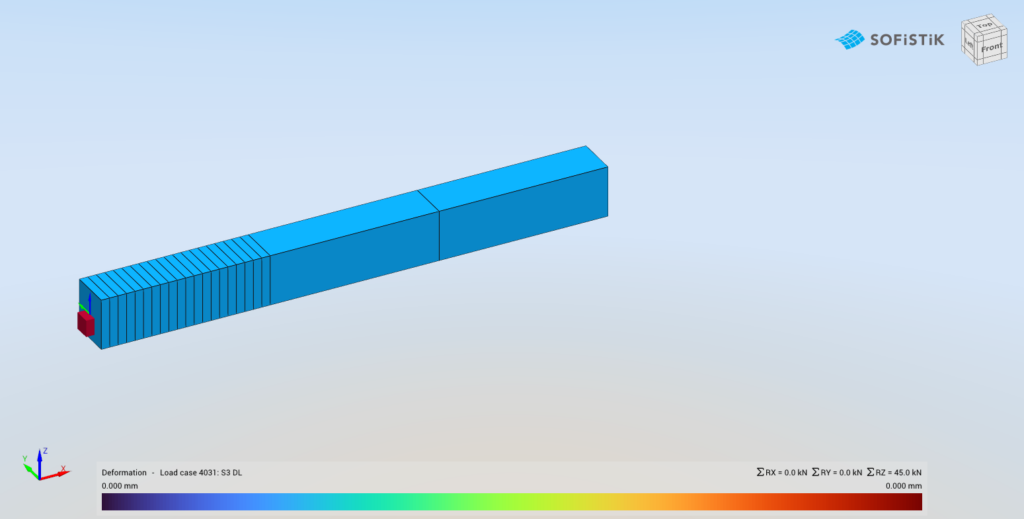

Stage 30 → 31 — Segment 3

• Stage 30: Activation of Segment 3 (without self‑weight)

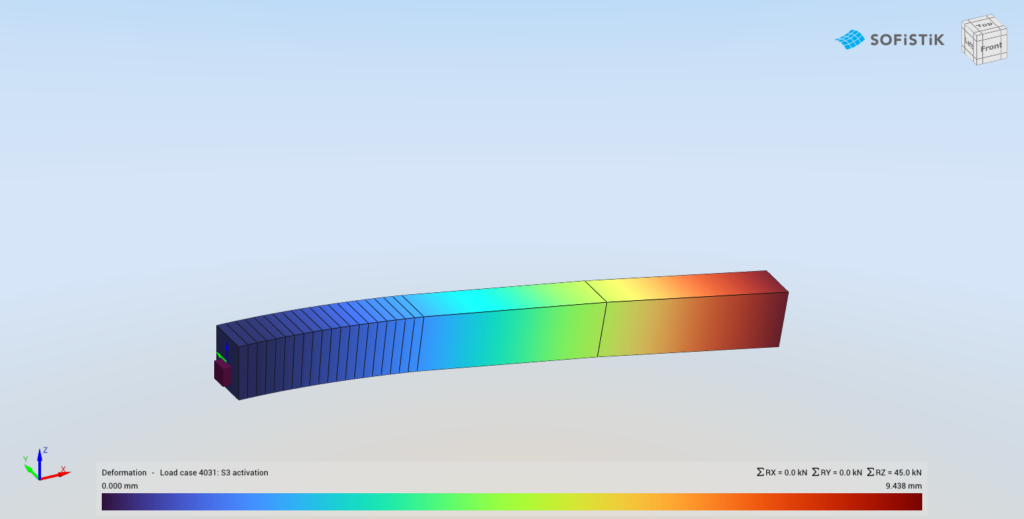

• Stage 31: Self‑weight of Segment 3 activated (Opening Stage)

Deformation increments due to the self‑weight of Segment 3:

• Node 1002 → 3.42 mm
• Node 1003 → 6.33 mm

Relative Camber (Segment 3):
Relative Camber = 6.33 − 3.42 = 2.91 mm

SOFiSTiK Report Pre-camber Table:

Construction Camber (Casting Curve)

Cumulative summation of stage‑wise relative camber values gives the required casting profile:

Interpretation

Since deformation increments are extracted directly between erection and self‑weight stages, Methodology 2 allows straightforward identification of camber contributions from each segment.

This eliminates the need for deformation back‑calculation required in Methodology 1 while yielding identical final casting curve ordinates.

9. Comparative Interpretation of Methodologies

Both methodologies yield identical final construction camber values because the total applied loading and structural configuration remain unchanged.

However, their practical interpretation differs:

Methodology 1 — Key Characteristics – Combined activation of structure and self-weight
– Fewer construction stages
– Faster modelling workflow
– Requires post-processing for relative camber separation

Methodology 2 — Key Characteristics – Separate activation of erection and loading
– Greater number of construction stages
– Clear identification of deformation sources
– Preferred for fabrication and casting control

10. Engineering Significance

Adopting a discretized staging improves:

• Casting curve accuracy
• Fabrication control
• Erection monitoring
• Camber reconciliation with field measurements

This approach is particularly beneficial for long-span segmental bridges where cumulative deformation effects are significant.

11. Conclusion

Pre-Camber determination through staged construction analysis is essential to ensure that the completed bridge profile satisfies design geometry requirements.

Two analytical methodologies were evaluated:

• Combined stage activation (Methodology 1)
• Discretized stage activation (Methodology 2)

While both approaches yield identical final camber values, Methodology 2 provides greater transparency in deformation interpretation and is better suited to fabrication planning and casting-curve development.

Accurate implementation of these staged construction techniques in SOFiSTiK enables engineers to predict erection behavior reliably and achieve precise geometric control in segmental bridge construction.

Downloads

Example files (ZIP)
Additional Guidance for Modelling (ZIP)
